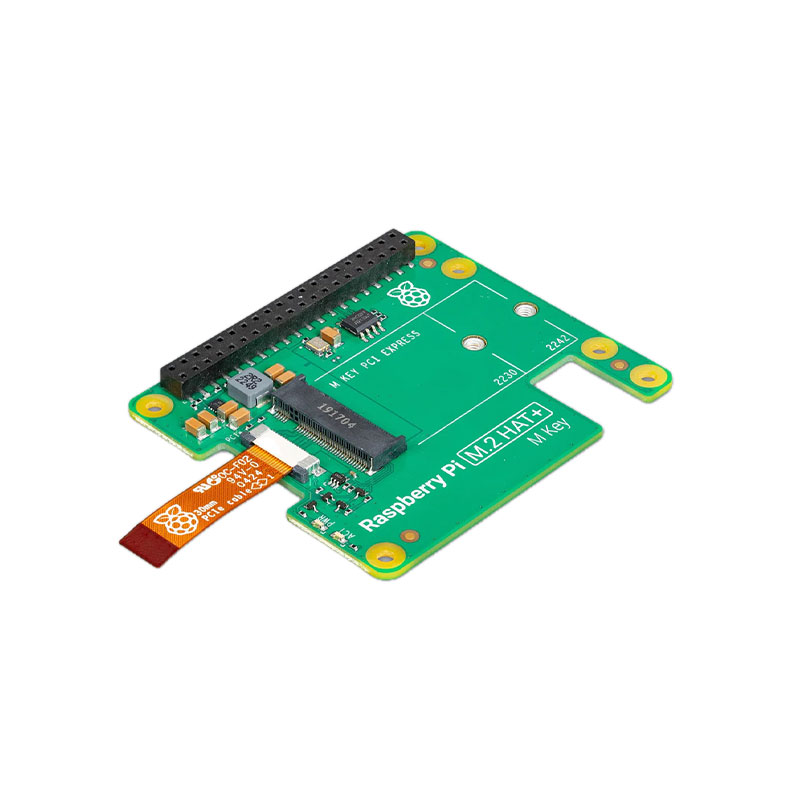

Raspberry Pi M.2 HAT+

The Raspberry Pi M.2 HAT+ is a revolutionary accessory that extends the capabilities of the Raspberry Pi 5 by enabling direct connectivity to M.2 peripherals such as NVMe solid-state drives and AI accelerator modules. Developed to take full advantage of the Raspberry Pi 5’s single-lane PCI Express 2.0 interface, this HAT offers blazing-fast data transfers of up to 500 MB/s—ideal for those who demand speed and performance in compact embedded projects or custom DIY solutions.

Purpose-Built for Raspberry Pi 5

This HAT+ is specifically designed to work exclusively with the Raspberry Pi 5, leveraging the 16-pin, 0.5mm-pitch FPC connector that exposes the PCIe interface. The board serves as a physical and electrical adapter between this interface and a subset of the M.2 standard, focusing on the M key edge connector that is common in modern NVMe SSDs and AI accelerators.

It’s important to note that this accessory is not compatible with other Raspberry Pi models, as only the Raspberry Pi 5 features the required PCIe output.

Support for M.2 NVMe and AI Peripherals

Whether you’re building a fast local server, setting up edge AI processing, or simply want to enjoy faster I/O performance, the M.2 HAT+ offers extensive compatibility. It supports devices with the 2230 and 2242 form factors, making it perfect for a wide range of NVMe SSDs and compatible M-key modules such as the Hailo AI accelerator.

The HAT+ can deliver up to 3A of power to attached peripherals—enough for most compact storage and AI modules. It also features power and activity LEDs to give you real-time status updates.

Easy Integration with Your Raspberry Pi Setup

HAT+ Compliance and Autodetection

Conforming to the Raspberry Pi HAT+ specification, this board is designed to integrate seamlessly with official Raspberry Pi software and hardware ecosystems. It is automatically detected by updated versions of Raspberry Pi OS, ensuring plug-and-play ease of use. Simply connect the ribbon cable and update your firmware for instant compatibility.

Installation Accessories Included

The Raspberry Pi M.2 HAT+ ships with everything needed for a secure installation:

• A PCIe ribbon cable

• A 16mm GPIO stacking header

• Threaded spacers and screws

• A knurled double-flanged screw for securing the M.2 device

Additionally, the provided hardware allows for compatibility with the Raspberry Pi Active Cooler, ensuring that thermal performance is not compromised even when stacking components.

Use Cases and Compatibility Bundles

You can use the Raspberry Pi M.2 HAT+ as a standalone accessory or in bundles like the Raspberry Pi SSD Kit, which includes an official NVMe SSD, or the Raspberry Pi AI Kit, which includes the Hailo AI accelerator module. For users interested in adding further expansion, tall push-fit stacking headers are available to allow stacking of an additional HAT on top.

Compact and Reliable for Long-Term Use

The M.2 HAT+ is built for stability and long-term support. It is guaranteed to remain in production until at least January 2032, giving makers and developers confidence in its availability for commercial or extended projects.

The operating temperature range of 0°C to 50°C (ambient) makes it suitable for most indoor environments, from labs and classrooms to home workshops.

Physical and Technical Specifications

What’s in the Box?

Everything you need to get started:

• 1× Raspberry Pi M.2 HAT+

• 1× PCIe ribbon cable

• 1× 16mm GPIO stacking header

• 4× Threaded spacers

• 8× Screws

• 1× Knurled double-flanged screw

Note: Raspberry Pi 5 and NVMe devices are not included.

FAQs

Can this HAT fit inside the official Raspberry Pi 5 case?
Yes, but with modifications. If you remove the lid and central fan insert, and avoid using the bottom screws, it will fit while staying stable with the provided header. The top lid cannot be reattached in this setup.

Do I need to update the Raspberry Pi OS?
Yes, it’s recommended to update to the latest Raspberry Pi OS to ensure the M.2 HAT+ is properly recognized and functions optimally.

Can I use full-size (2280) NVMe SSDs?
No, only 2230 and 2242 form factor devices are supported.

The Raspberry Pi M.2 HAT+ is an essential upgrade for anyone looking to unlock the full potential of their Raspberry Pi 5. Whether you’re running a high-performance SSD, adding AI capability, or simply exploring advanced I/O options, this HAT+ provides a reliable, high-speed connection with a straightforward installation process and long-term support.
